2.5G/5G BASE-T SINGLE PORT MAGNETICS MODULE
Part number: DG24111SKG
Compliant with IEEE 802.3bz&bt
Comply with ROHS requirements.
Soldering peak temperature 250℃
Operating temperature 0~+70℃
1000mA DC current capability

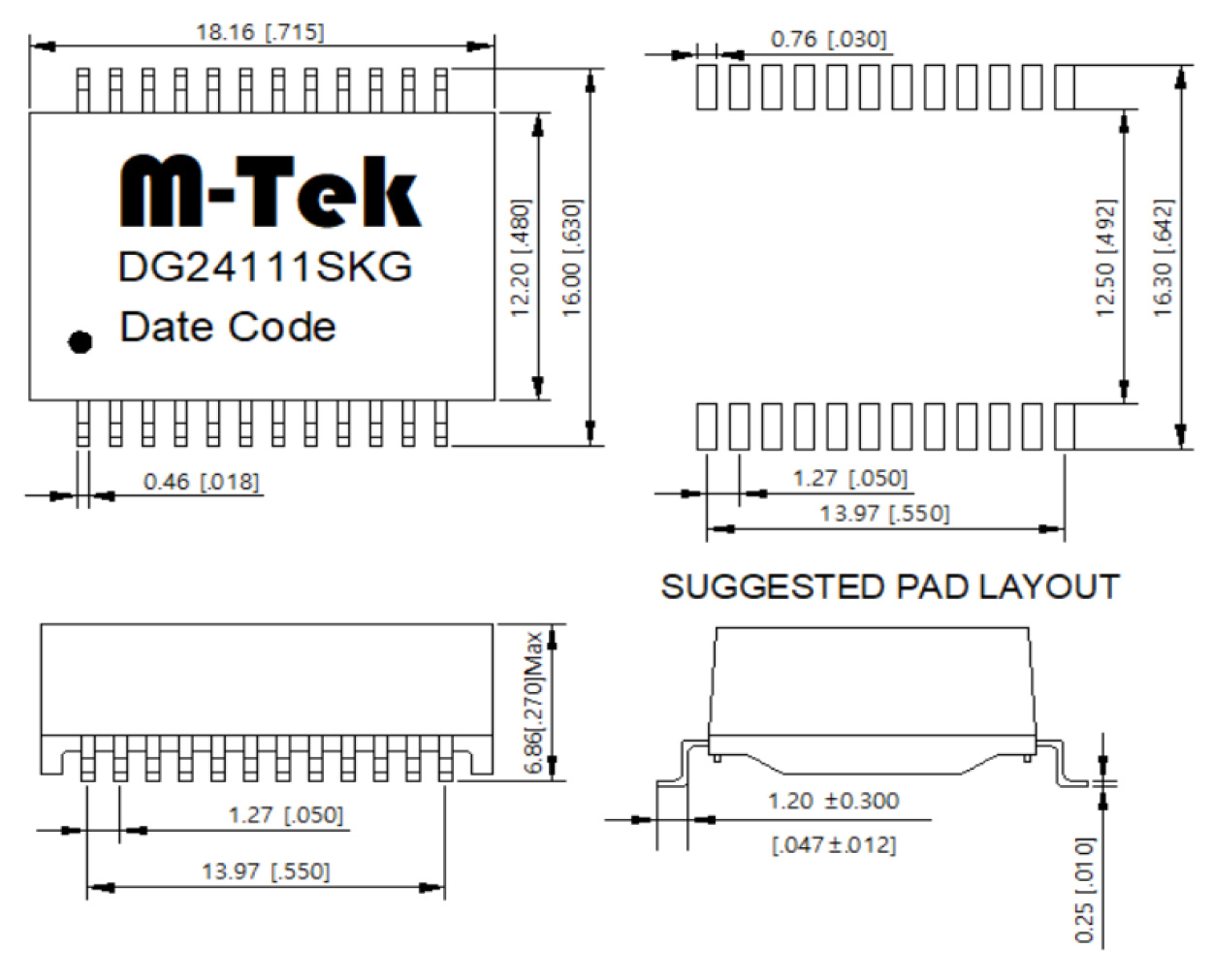

Electrical Specification at 25℃ OCL: 150uH Min. @100KHz/0.1V Hi-POT : 1500Vrms Turn Ratio: 1:1±3% LK: 0.35uH Max @100KHz/0.2V Cw/w 25PF typ@100KHz/0.2V D.C.R: 1 ohm Max Insertion Loss: 1.1dB Max: 1-100MHz 2.5dB Max:100-250MHz Cross Talk : 30dB Min : 1-125MHz Return Loss: 16dB Min 1-40MHz 16-10log(f/40)dB min 40-250MHz DCMR 30dB Min : 1-125MHz Schematics Machinical Dimensions
